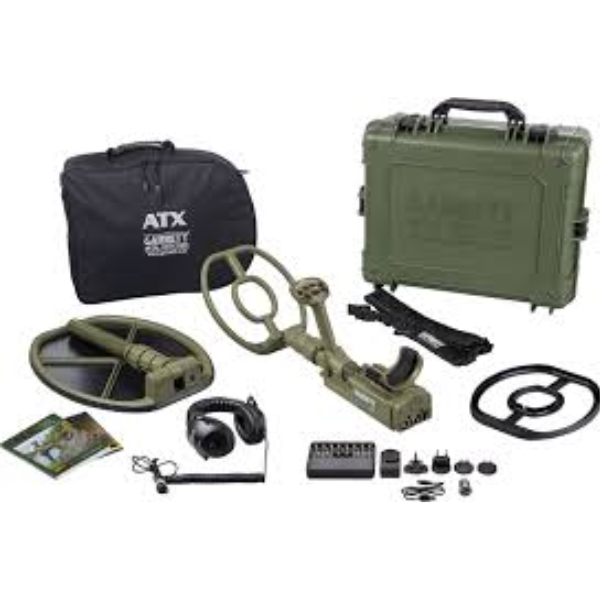

Garrett ATX Metal Detector

Garrett ATX Metal Detector (Pulse Induction): Comprehensive Guide

Introduction
The Garrett ATX Metal Detector is a professional-grade pulse induction (PI) detector, renowned for its rugged build and advanced capabilities. Ideal for extreme environments, including mineralized ground and underwater exploration, the ATX offers top-tier performance. This guide provides all the essential details you need to know about the Garrett ATX, including its features, specifications, operation, and tips for optimal performance.

Features

• Advanced Pulse Induction Technology
  The ATX utilizes advanced PI technology to detect metals effectively, even in highly mineralized soils or saltwater. It offers enhanced depth detection and stability for challenging conditions.

• Rugged and Waterproof Design
  Built for durability, the ATX is military-grade and fully submersible up to 10 feet (3 meters), making it perfect for underwater detecting in rivers, lakes, and shallow coastal areas.

• Multiple Search Modes
  With Motion and Non-Motion modes, the Garrett ATX offers versatility for various detecting environments and target types.

• Adjustable Ground Balance
  The detector includes an adjustable ground balance system, compensating for soil variations to ensure optimal accuracy and reduce false signals.

• Iron Check
  Easily distinguish between ferrous (iron) and non-ferrous metals with this feature, allowing users to ignore unwanted iron and focus on valuable finds.

• Enhanced Audio Indications
  The ATX provides multi-tone audio feedback for different target types and signal strengths, helping you interpret signals more effectively.

• Easy-to-Use Interface
  Featuring intuitive controls and a clear LCD display, the ATX makes it easy to view essential information such as target signal strength and battery status.

Specifications

• Operating Frequency: 730 pulses per second (adjustable)

• Weight: 6.9 pounds (3.13 kg)

• Battery Life: Up to 10 hours with standard AA batteries

• Search Modes: Motion, Non-Motion, Iron Check

• Waterproof Rating: Submersible up to 10 feet (3 meters)

• Coil Size: 10″x12″ DD Search Coil

• Ground Balance: Adjustable

How to Use the Garrett ATX Metal Detector

1. Assembly

   • Attach the Coil: Secure the search coil to the lower shaft.

   • Adjust the Shaft: Extend or retract to a comfortable length.

   • Connect the Control Box: Attach the control box to the upper shaft and secure the cable.

2. Powering On and Calibration

   • Insert Batteries: Make sure AA batteries are fully charged.

   • Power On: Turn on the detector using the power button.

   • Ground Balancing: Follow the LCD screen prompts to perform ground balancing for the best performance in current soil conditions.

3. Search Techniques

   • Sweep the Coil: Move the coil slowly and steadily parallel to the ground.

   • Overlap Swings: Ensure swings overlap for full coverage.

   • Responding to Signals: Use pinpoint mode to locate the object and dig carefully to retrieve the target.

Tips for Effective Metal Detecting

• Research Your Location: Look for historical sites or areas known for valuable deposits to increase your chances of finding treasures.

• Start with Default Settings: Begin with default settings to familiarize yourself, then adjust sensitivity and discrimination as needed.

• Use Headphones: Headphones enhance faint signal detection and conserve battery life.

• Regular Maintenance: Clean the coil and control box after each use, check for loose connections, and ensure battery charge to maintain detector performance.

Common Issues and Troubleshooting

• False Signals: Caused by mineralized soil or nearby metal interference. Adjust sensitivity or ground balance to minimize these signals.

• Poor Depth Detection: Check the coil connection, ensure the battery is charged, or use all-metal mode for deeper detection.

• Unstable Readings: Could be due to loose connections or excessive coil movement. Secure connections and steady coil operation can resolve this.

Personal Experience
Having personally used the Garrett ATX, I can vouch for its impressive depth detection and durability. Even if dropped, its military-grade construction ensures it continues to perform without issue. Initially, it may require some getting used to, but once you understand how to operate it, the ATX becomes easy to use. With a solid warranty and high-quality build, this metal detector is a reliable choice for serious treasure hunters.
